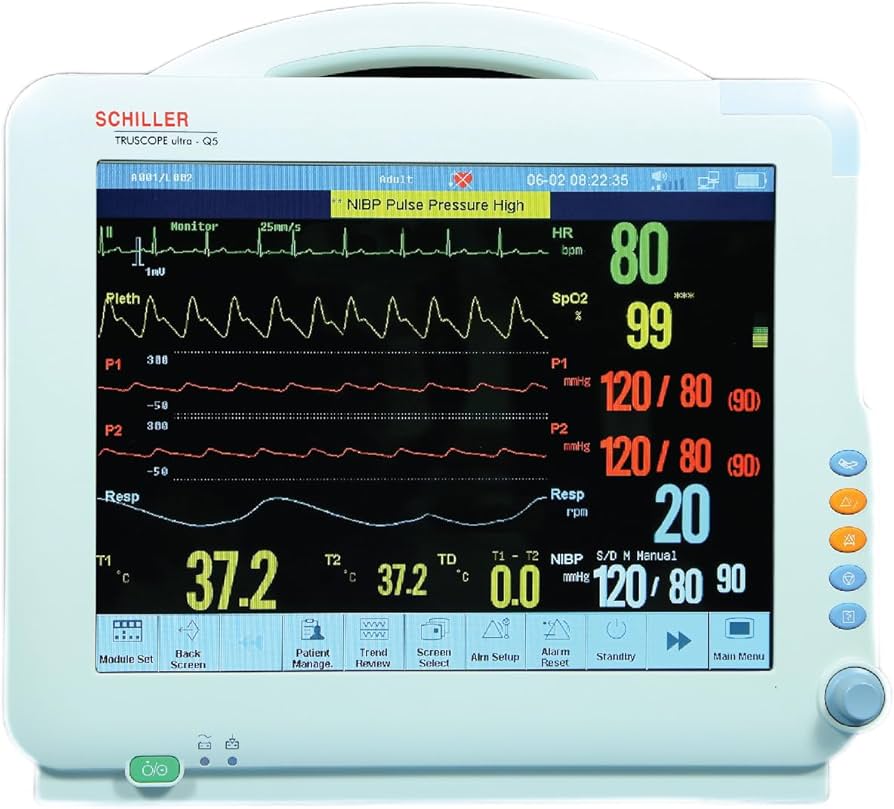

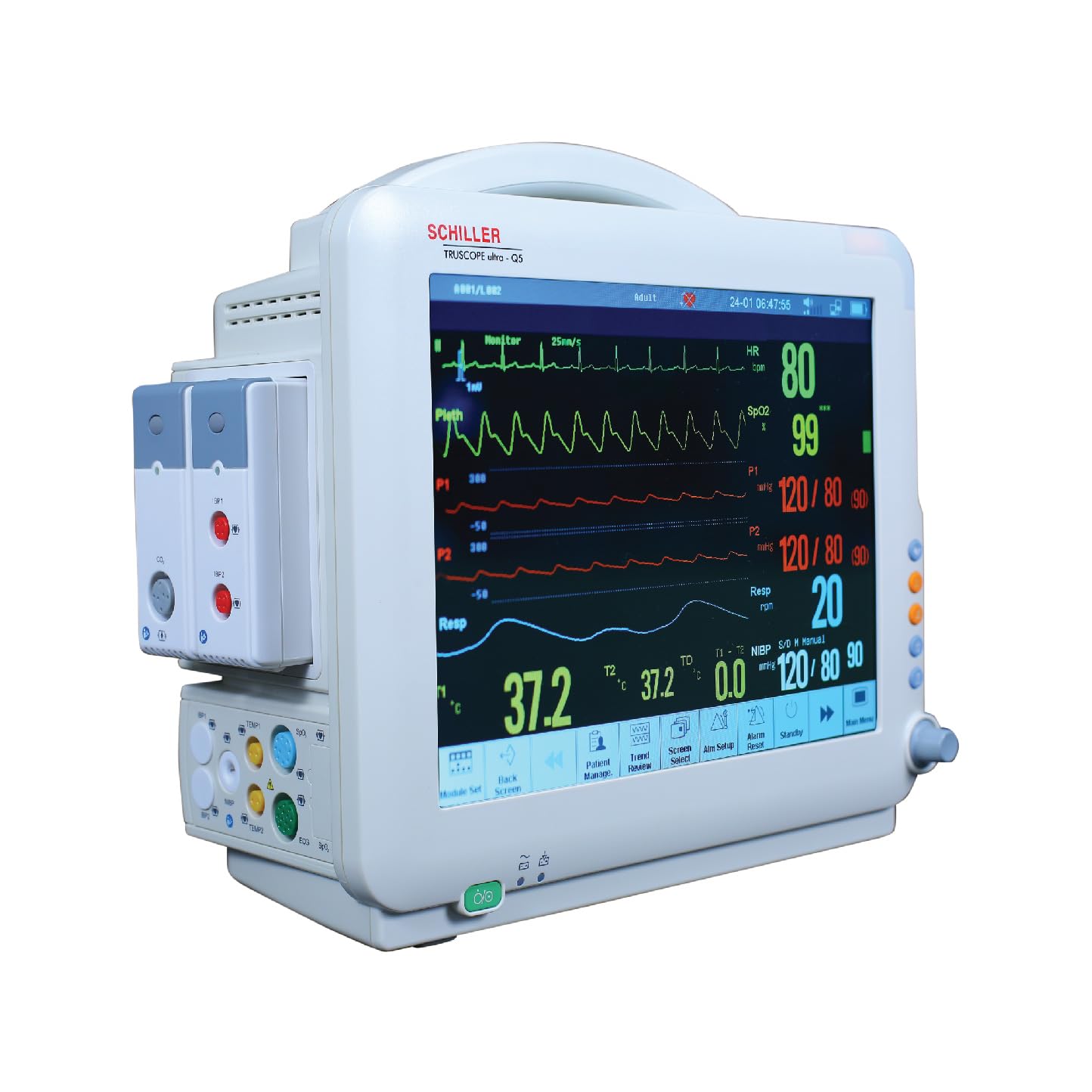

TRUSCOPE Ultra Q5

1.Modular touchscreen patient monitor designed to scale for different clinical settings.

2.Equipped with a 12.1″ color TFT LCD touchscreen to provide a clear and responsive display.

3.Supports up to 7-lead ECG by default, with an option to expand to 12-lead ECG.

4.Capable of displaying 10 waveforms simultaneously, offering a detailed real‑time monitoring view.

5.Provides 9 different screen layout configurations, allowing flexibility in how parameters are displayed.

6.Includes advanced cardiac analysis features: ST-segment monitoring, arrhythmia detection, and QT analysis with ST‑map.

7.Offers calculation tools for drug dosing, hemodynamics, renal profile (nephridium), and oxygenation.

8.Comes with OXY‑CRG software to continuously monitor oxygenation and cardiac rhythm.

9.Stores up to 168 hours of trend data in both graphical and tabular formats for long-term patient tracking.

10.Built-in non-volatile memory prevents loss of data in the event of a power failure.

11.Equipped with USB ports for data transfer.

12.Offers wired and Wi-Fi connectivity options for integration with a central monitoring system.

13.Modular design supports optional upgrades, such as EtCO₂ (mainstream / sidestream / microstream), multigas monitoring, cardiac output measurement, dual invasive blood pressure (IBP), BIS, advanced SpO₂ (Nellcor / Masimo), and EEG.

14.Has preconfigured standard parameters: ECG, respiration rate (RR), SpO₂, temperature, and NIBP.

15.Includes optional VGA output for external video display.

16.Lightweight and compact footprint: approximately 318 × 264 × 152 mm, weighing less than 4.5 kg.

17.Powered by a rechargeable lithium-ion battery, providing approximately 210 minutes (~3.5 hours) of runtime on full charge.
