TRUSCOPE P Series

1.The TRUSCOPE P Series is a high-end, modular patient monitoring platform offering maximum flexibility and scalability for critical and perioperative care.

2.Available in four screen sizes: 12.1″ (P12), 15.6″ (P15), 18.5″ (P18), and 22″ (P22).

3.Each unit features a full-color capacitive TFT touchscreen with multi-finger gesture support for intuitive and responsive operation.

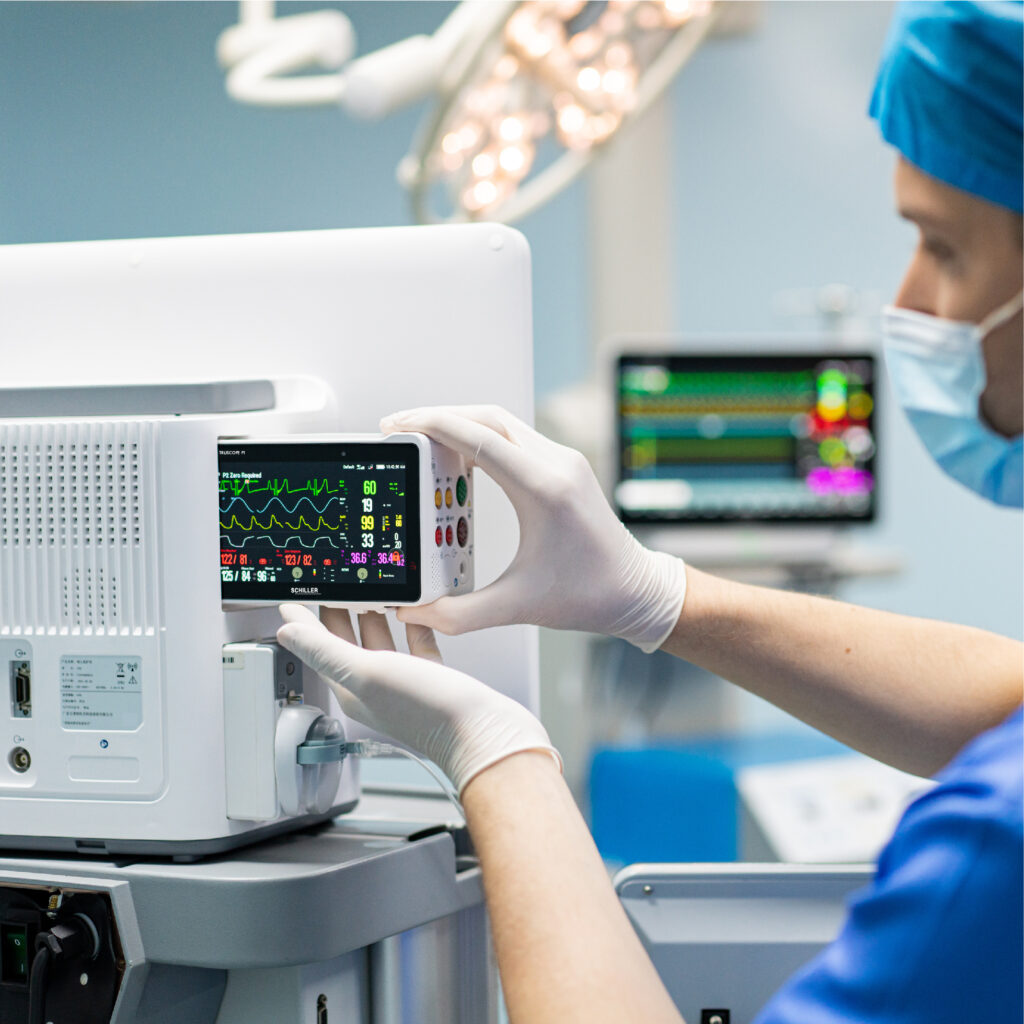

4.Built-in P1 transport monitor with a 5.5″ touchscreen and up to 8 hours of battery backup ensures seamless monitoring during patient transfers.

5.Modular architecture supports 4–6 interchangeable slots to house a variety of clinical modules, adaptable to different care settings.

6.Supports ECG from 3 up to 12 leads and can display up to 12 waveforms simultaneously.

7.Advanced cardiac monitoring includes ST-segment analysis with mapping, detection of 27 different arrhythmias, and QT/QTc measurement.

8.Built-in calculation tools for drug dosing, hemodynamics, oxygenation, ventilation, and renal (nephridium) assessment.

9.Advanced clinical support features include Respiratory Mechanics (flow-volume loops), Early Warning Score (EWS), Glasgow Coma Scale (GCS), Sepsis View, and Balance of Anesthesia (BOA).

10.Optional high-end monitoring modules: NMT (neuromuscular transmission), regional oxygen saturation (rSO₂), EEG, anesthetic gas (AG), CO₂ (mainstream or sidestream), BIS, ICG, invasive blood pressure (IBP), and cardiac output (CO).

11.Seamless connectivity with hospital EMR and HIS systems for efficient data management.

12.Supports drip monitoring.

13.Robust data storage: up to 180 hours of trend data, 3,000 parameter alarm events, 3,000 arrhythmia events, 2,400 NIBP measurements, and 72 hours of high-fidelity waveforms.

14.Power backup: P1 transport monitor — 4 hours (single battery) or 8 hours (dual battery); P12 — ≥4 hours; P15/P18/P22 — ≥3 hours.

15.Optional hardware accessories: 12‑lead ECG, external display (DBI), Wi‑Fi module, transport handle and docking station, thermal recorder, rolling stand or wall mount, central monitoring system (wired or Wi-Fi).

16.Supports optional modular upgrades across a wide parameter range, allowing hospitals to tailor monitors to clinical workflow and future needs.
