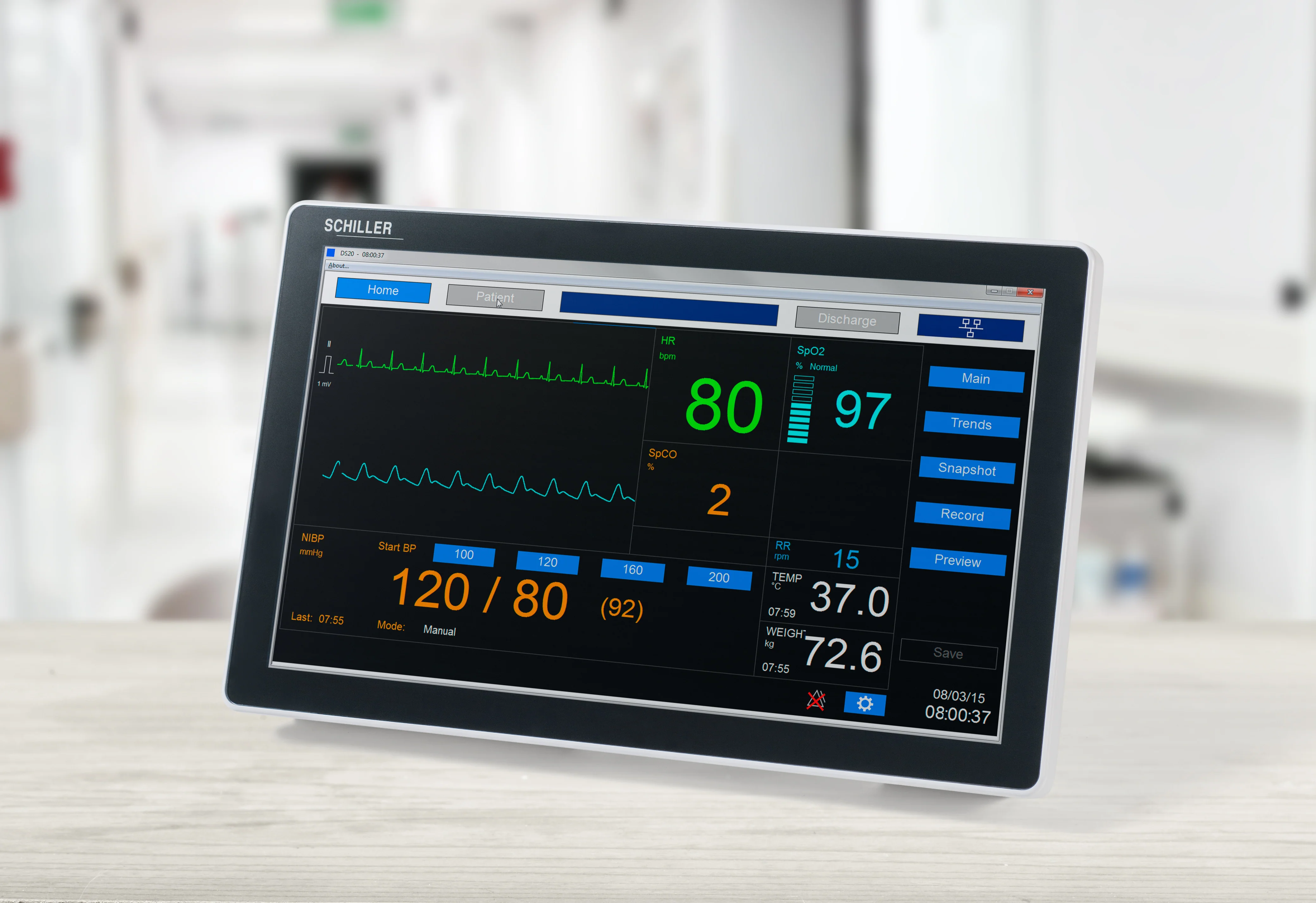

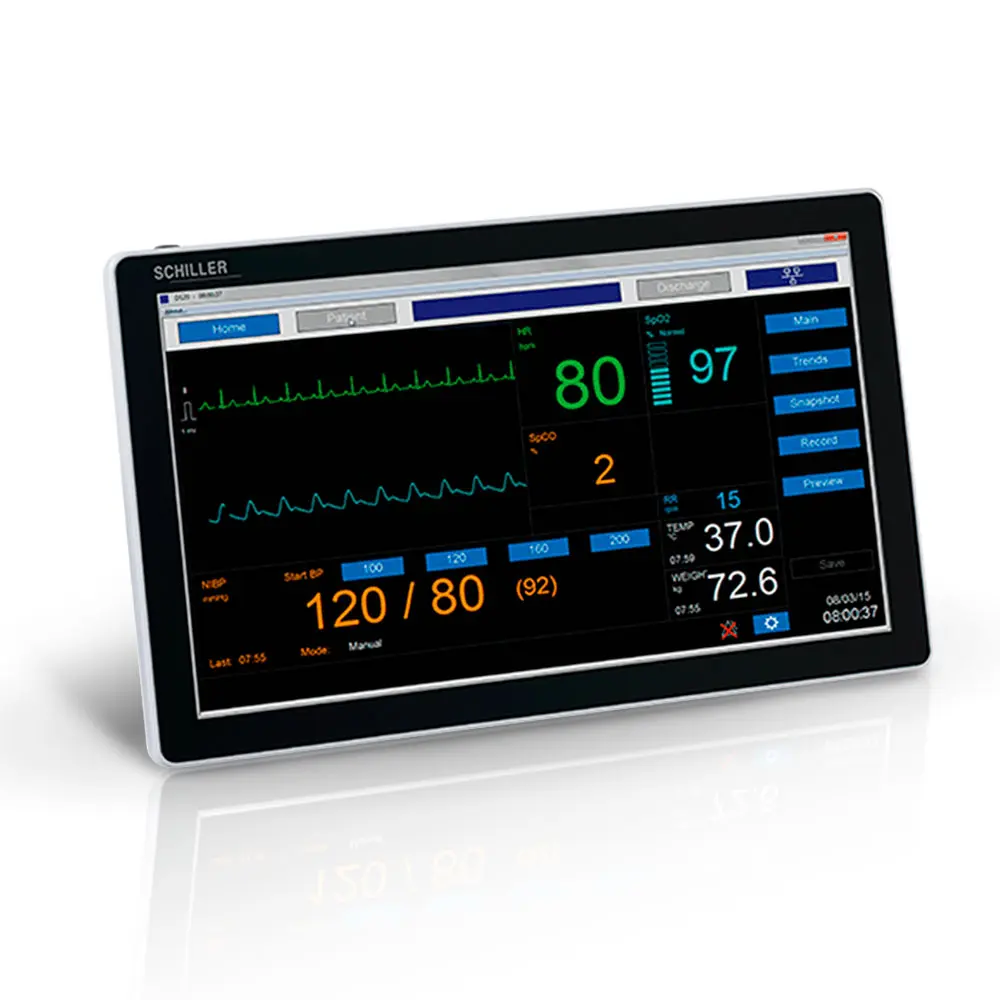

DIAGNOSTIC STATION DS20

1. Overview:-
-All-in-one diagnostic workstation combining vital-sign monitoring and ECG functions.
-Designed for hospitals, clinics, ER/triage, and physician offices to streamline routine patient assessments.
-Automatically detects connected sensors and displays vital sign values immediately for quick setup.
Supports bidirectional communication via Wi‑Fi and Ethernet for integration with hospital systems (EMR, HIS, PACS, SEMA).

2. Key Features:-
-Vital Sign Monitoring
-Heart rate (HR) and respiratory rate (RF) measurement
-Non-invasive blood pressure (NIBP)
-SpO₂ monitoring (Masimo or Nellcor compatible)
-Optional SpCO (carboxyhemoglobin) via Masimo Rainbow module
-Optional temperature measurement (forehead / temporal artery)
-Optional connection to electronic scale for weight, height, and BMI calculation
-ECG Functionality
-Standard 3-lead ECG; optional 12-lead resting ECG with ETM automatic interpretation
-Resting rhythm ECG mode for rhythm recording
-High-quality ECG signal with 32,000 Hz sampling rate per channel
-Optional Diagnostic Modules
-Spirometry: full testing (FVC, SVC, pre/post-bronchodilator)
-Pulse Wave Analysis (PWA): measures arterial stiffness / cardiovascular risk

3. User Interface & Workflow:-
-Large, 18.5″ interactive touchscreen
-Intuitive, self-explanatory interface requiring minimal training
-Fast setup: auto-detects connected sensors and displays measurements
-Simple workflow: Perform → Review → Store/Export

4. Connectivity & Data Management:-
-Wi-Fi and Ethernet connectivity to hospital systems
-Works with SEMA3 data management system for centralized storage and retrieval
-Optional worklist / order entry from EMR/HIS
-Export or print final reports (vital signs + ECG + optional spirometry) via network or printer

5. Hardware & Physical Specs:-
-Dimensions: ~460 × 275 × 77 mm
-Weight: ~4.5 kg
-Power: 100–240 V AC, with internal battery for limited mobility
-Touchscreen: high-resolution, multi-touch 18.5″
-Local storage: internal database for patient data

6. Safety & Regulatory:-
-Not an alarm-capable monitoring device; intended as a data acquisition tool
-Suitable for adult and pediatric patients
-Compliant with medical safety standards (IEC/EN norms)

7. Advantages / Strengths:-
-Workflow efficiency: combines vital signs, ECG, and optional spirometry in one device
-User-friendly: large touchscreen, intuitive interface
-Expandable & future-proof: supports optional modules like spirometry and PWA
-Seamless system integration: connects with EMR/PACS/HIS and SEMA
-High ECG quality: very high sampling rate ensures diagnostic fidelity

8. Use Cases:-
-Triage, ER, urgent care, hospital intake
-Outpatient clinics and physician offices for routine screening
-Cardiology practices needing combined vital-sign and ECG monitoring
-Occupational medicine settings requiring all-in-one functionality
