CENTRAL STERILE SERVICE DEPARTMENT
CSSD is a mandatory department as per MCI & NABH, handling cleaning, sterilization, and distribution of medical instruments. We offer complete CSSD turnkey solutions—from expert design and zoning to supply, installation, and commissioning of all required equipment.
Key Features
- Premium Quality Equipment
- Free Installation Support
- Manufacturer Warranty
- 24/7 Technical Support
Product Description
Key features & components:
Comprehensive CSSD setup covering receiving, cleaning, decontamination, sterilization, packing, and distribution of reusable medical and surgical instruments.
Includes critical equipment such as:
1.Double sink with platform
2.Spray guns for pre-cleaning
3.Instrument washers

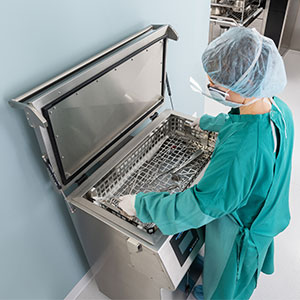

4.Ultrasonic cleaner
5.Hot air oven
6.Autoclave for steam sterilization
7.ETO sterilizer for low-temperature sterilization

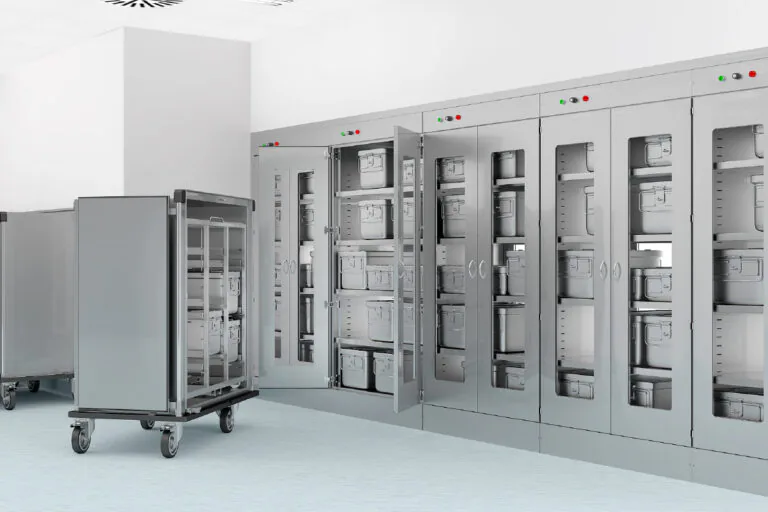

8.Work tables, racks, and transfer trolleys
9.Pass boxes and air purification systems
10.RO water system, heat sealing machines, and other essential furniture & stainless-steel panelling.
Purpose & Benefits:
Delivers a centralized, standardized sterile processing workflow to ensure instruments are properly cleaned and sterilized before patient use.
Supports compliance with infection control best practices—critical for reducing hospital-acquired infections and ensuring patient safety, consistent with general CSSD functions in healthcare.
Turnkey capability:
M Shah & Co. provides end-to-end CSSD project delivery—from initial consultation, layout planning and design, through to supply, installation, and commissioning of the entire CSSD system.
Technical Specifications
| Air Purification System | HEPA filtration, 6–10 ACH, Positive pressure in sterile area |
| CSSD Zoning | Dirty → Clean → Sterile unidirectional workflow |
| Compliance | Designed as per MCI, NABH & Infection Control norms |
| Double Sink with Platform | SS 304 construction, deep bowl, splash back, pre-wash & soak station |
| ETO Sterilizer | Low-temperature sterilization, SS chamber, Fully automatic cycles, Safety interlocks |
| Environmental Conditions | Temp: 20–23 °C, Humidity: 45 ± 5 % |
| Heat Sealing Machine | Seal width: 10–12 mm, Digital temp & speed control, SS body |
| Hot Air Oven | Temp range: Ambient to 160–200 °C, Forced air circulation, SS chamber |
| Instrument Washer Disinfector | Capacity: 200–280 L (8–10 DIN trays), Temp up to 93 °C, A₀ ≥ 3000, SS 316L chamber, Auto drying |
| Pass Box | SS construction, Interlocked doors, UV/HEPA optional |
| RO Water System | Output: 50–200 L/hr, Conductivity ≤ 10 µS/cm (final rinse) |
| Steam Autoclave | Temp: 121–134 °C, Pressure: 15–30 psi, SS 316L chamber, Vacuum & PLC control |
| Transfer TrolleysTransfer Trolleys | Open/Closed type, SS 304 construction, Smooth wheels |
| Ultrasonic Cleaner | Frequency: 25–45 kHz, Tank: 15–100 L, Temp up to 80 °C, SS tank, Digital timer |
| Work Tables & Racks | SS 304, Adjustable shelves, Easy clean design |
