CARDIOVIT FT-2

1. Design & Display:-

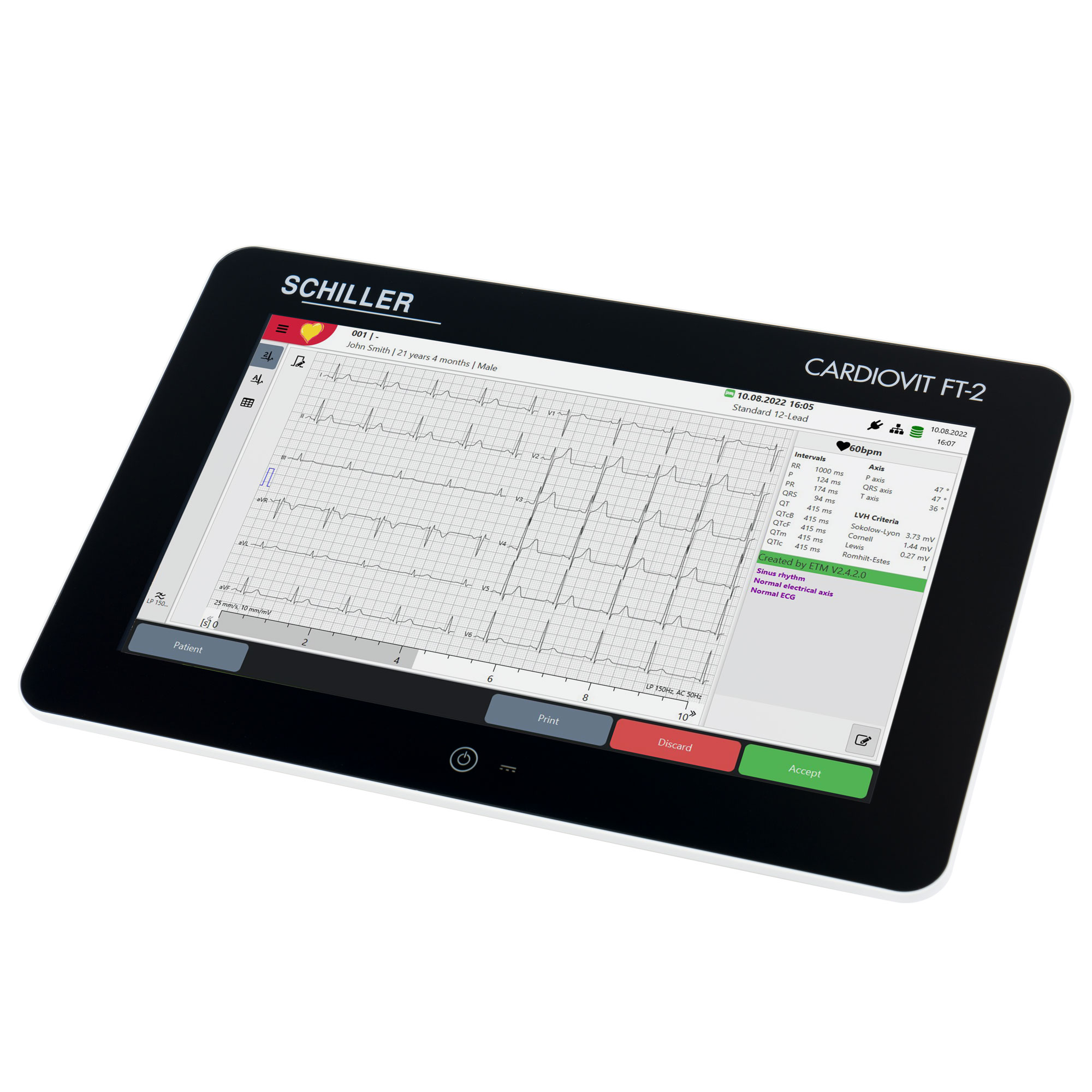

-15″ multi-touch screen — large, intuitive, and easy to clean.
-Seamless surface (no keyboard) for high hygiene; ideal for clinical and hospital environments.

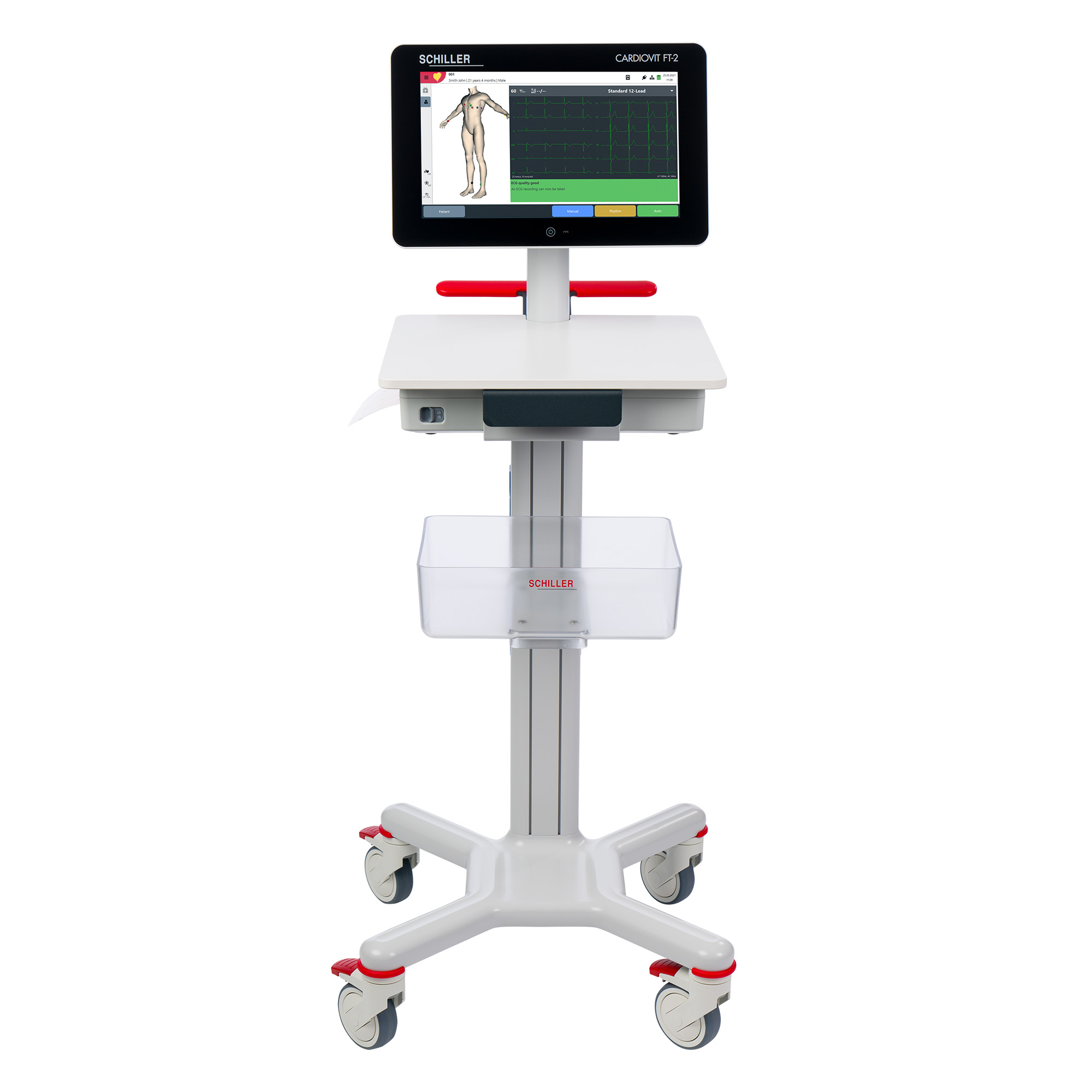

-Custom trolley available for organized cable management.

2. Diagnostic & ECG Recording:-
-Resting ECG with ETM interpretation, with optional ETM Sport module for athletes.
-Rhythm recording capability for up to 20 minutes.
-Supports multiple lead sequences: standard, pediatric, right precordials, and more.
-On-board signal quality checks including lead-off and lead-reversal detection.

3. Spirometry (Optional):-
-Optional ultrasound-based spirometry module using SpiroScout SP plus.
-Supported spirometry tests: FVC (with incentive screen), SVC, and MVV.
-Automatic interpretation of FVC, real-time quality feedback, and pediatric incentive display.

4. Connectivity & Workflow:-
-Bidirectional communication with worklist/PDQ support for seamless hospital workflow integration.
-Secure Wi-Fi with certificate-based authentication.
-Configurable user access control with username/password and privilege management.

5. Cybersecurity:-
-Runs on a security-hardened Linux kernel to reduce cybersecurity risks.
-Access control ensures only authorized users can access system functions.

6. Printer (Optional):-
-Optional A4 thermal printer for use in both paper-based and paperless environments.

7. Memory / Storage:-
-Internal storage capacity:
-≥ 350 resting ECGs
-~100 rhythm ECGs
-~100 spirometry sessions (if spirometry module is installed)
-Supports on-screen review of ECGs before and after recording.

8. Power / Electrical:-
-Power input: 100–240 VAC (medical-grade power supply) or battery operation.
-Power consumption: up to ~64 VA.
-Battery runtime: approximately 4 hours during normal use (without printing or Wi-Fi).

9. Safety & Certification:-
-ECG amplifier is defibrillation-protected when used with compatible patient cables.
-Meets IEC/EN 60601-1 and IEC/EN 60601-2-25 medical safety standards.
-Ingress protection rating: IP20.
-Classified under EU MDR as Class IIa medical equipment.

10. Environmental Specifications:-
-Operating temperature: +10 °C to +40 °C.
-Transport temperature: –10 °C to +50 °C.
-Operating humidity range: 15%–95% (non-condensing).
-Dimensions: 424 × 274 × 44 mm.
-Weight: approximately 3.82 kg.
