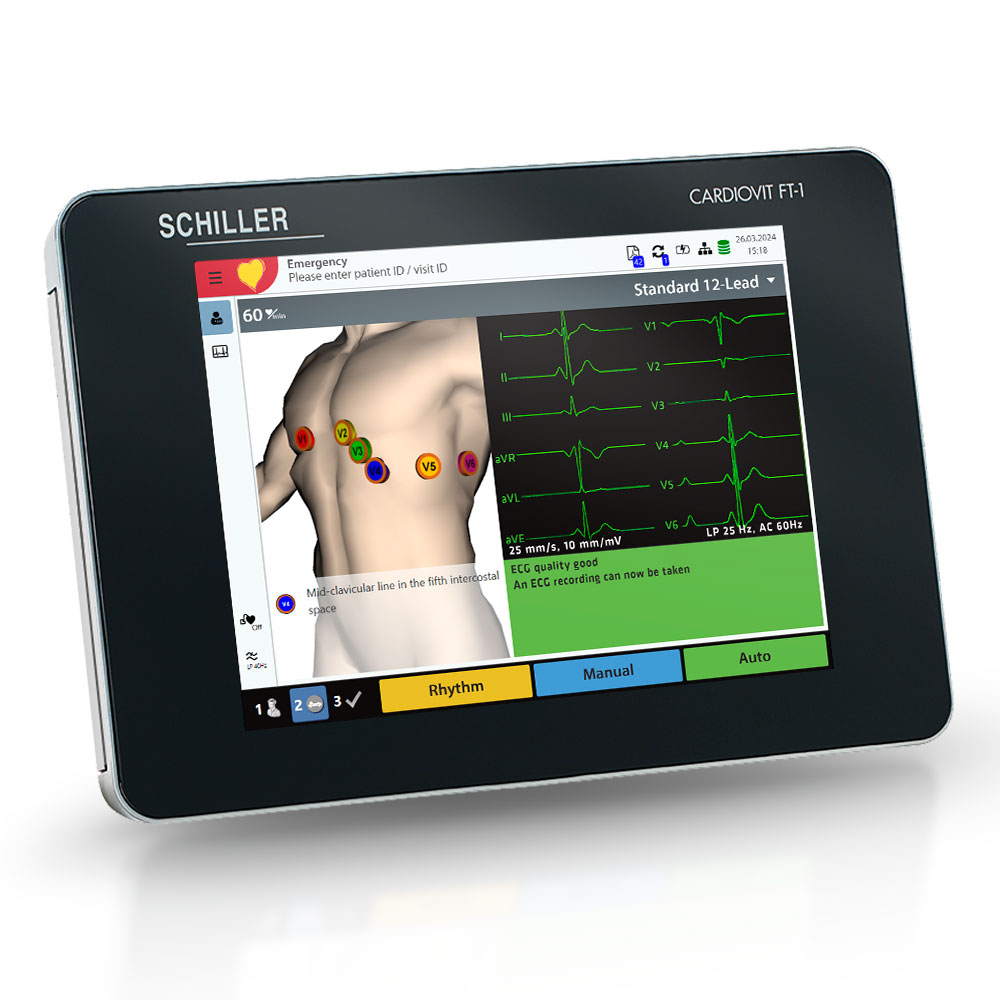

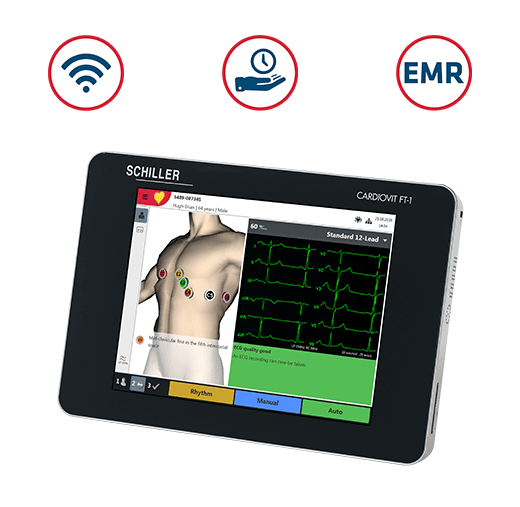

CARDIOVIT FT-1

1. Connectivity
-Fast, secure bi-directional Wi-Fi for communication with hospital systems and EMRs.
-Supports wired LAN (Ethernet) for stable network communication.
-Optional worklist integration to streamline patient data workflows.

2. Diagnostic & Analysis Software
-Automatic ECG interpretation (ETM).
-Optional ETM Sport module optimized for athletes (Seattle Criteria-based).
-Optional CCAA (Culprit Coronary Artery Algorithm) for early STEMI detection.

3. ECG Recording / Acquisition
-Simultaneous 12-lead ECG acquisition (all leads recorded at once).
-Resting rhythm recording up to 4 minutes for rhythm monitoring.
-Lead-reversal detection alerts users of incorrect electrode placement.
-Hook-up adviser with color-coded waveforms and anatomical model for correct lead placement.

4. Signal Quality
-High sampling frequency: 32,000 Hz for high-fidelity signal capture, beneficial for pediatric ECGs.
-Excellent signal quality for both adult and pediatric ECGs.

5. Memory / Storage
-Internal memory stores up to 350 resting ECGs.
-Can store up to 100 rhythm recordings.

6. User Interface / Design
-Compact and portable design, smaller than a tablet.
-Lightweight at approximately 1.1 kg including the battery.
-Flat, closed surface for easy cleaning and improved hygiene.

7. Power / Battery
-Operates on either mains or battery power.
-Battery life of approximately 3–4 hours, depending on settings (e.g., Wi-Fi usage).

8. Printer
-Integrated thermal printer using Z-fold chart paper.
-Multiple print speeds depending on the recording mode (resting, rhythm, etc.).

9. Export / Reporting
-ECGs can be exported as PDF via USB stick.
-Supports standard health-system communication protocols such as HL7 and DICOM.

10. Environmental / Operational Specifications
-Operating temperature range: 10 °C to 40 °C.
-Operating humidity: 15–95% (non-condensing).
-Dimensions: ~230 × 160 × 30 mm (9.1″ × 6.3″ × 1.2″).

11. Security / Certification
-Utilizes secure Wi-Fi protocols such as WPA2.
-Equipped with a defibrillation-protected amplifier for added safety.
