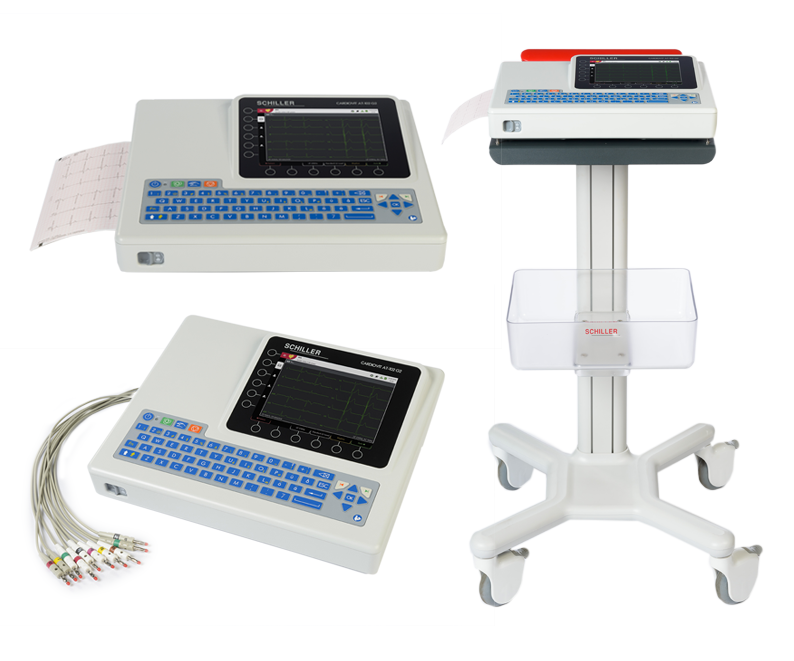

CARDIOVIT AT-102 G2

1. Overview:-
-The AT‑102 G2 is a next-generation ECG machine designed for clinics, hospitals, and busy care environments.
-Combines high signal quality with modern connectivity and robust usability, making it easy, smart, and state-of-the-art.

2. Display & User Interface:-
-8-inch color LCD screen with touch-function keys.
-Sealed alphanumeric keyboard — spill-resistant and easy to sanitize, suitable for daily clinical use.
-Navigation keys for efficient workflow.

3. ECG Recording & Diagnostic Features:-
-Performs 12-lead resting ECG and rhythm ECG.
-Resting rhythm recording for up to 10 minutes.
-Hook-up advisor with color-coded waveforms and anatomical model for correct electrode placement.
-Lead-reversal detection to prevent misplacement errors.
-Pacemaker detection capability.

4. Diagnostic Algorithms & Optional Features:-
-ETM automatic ECG interpretation.
-Optional ETM Sport module for athletes (Seattle Criteria).
-Optional CCAA (Culprit Coronary Artery Algorithm) for locating coronary artery obstruction.
-Optional basic exercise ECG (stress testing) for treadmill or ergometer protocols.

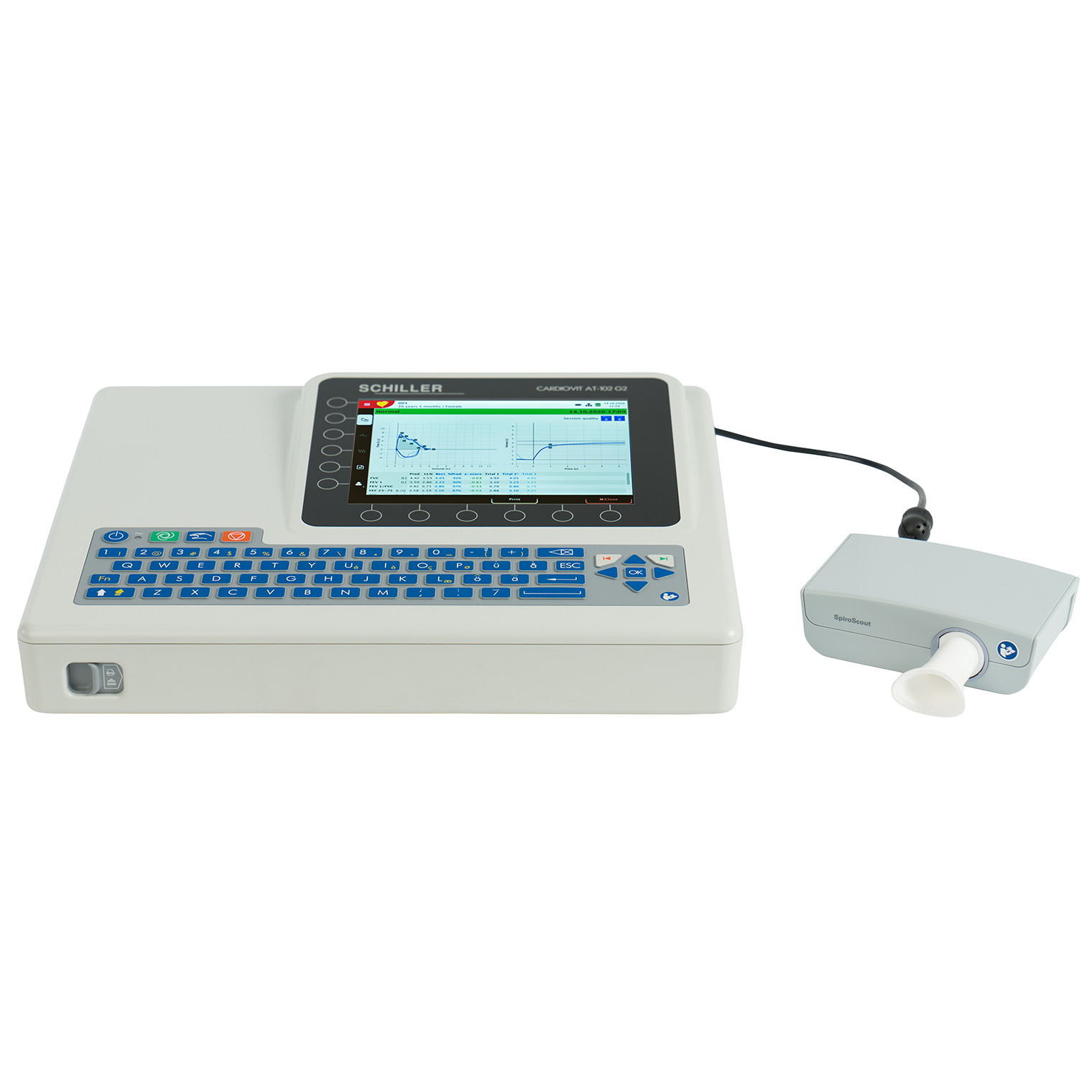

Optional spirometry via SpiroScout SP plus: supports FVC, SVC, MVV, with pediatric incentive screen and feedback.

5. Connectivity & Data Workflow:-
-Built-in Wi-Fi and LAN for fast, bidirectional communication with hospital systems (EMR, HIS).
-Supports worklist/PDQ to download or enter patient information easily.
-ECG reports exportable as PDF, DICOM, HL7, or XML.

6. Memory & Storage:-
-Stores approximately 350 resting ECGs.
-Can store up to 100 rhythm ECG recordings.
-Supports quick on-screen ECG preview before saving or printing.

7. Power / Battery:-
-Smart battery system providing more than 8 hours of ECG operation.
-Printing possible while on battery.

8. Printer-
-Internal thermal printer for A4-size printouts.
-Customizable print layout.

9. Signal Quality:-
-High-fidelity ECG with 32,000 Hz sampling rate — ideal for pediatric ECGs and advanced diagnostics.
-High bandwidth (up to 250 Hz) improves neonatal and child ECG recordings.

10. Cybersecurity:-
-Security-hardened system to protect patient data.
-Username/password access control to restrict usage and protect data.

11. Workflow Efficiency:-
-1-2-3 step ECG acquisition process:
-Enter or download patient data
-Validate signal quality and perform ECG
-Review ECG, then store, export, or print
-Supports paperless workflows to reduce costs and manual handling.

12. Physical & Environmental Specs:-
-Dimensions: ~384 × 319 × 90 mm
-Weight: ≈ 4.5 kg (with thermal paper)
-Operating temperature: 10 °C to 40 °C
-Storage/transport temperature: –10 °C to +50 °C

13. Target Use / Applications:-

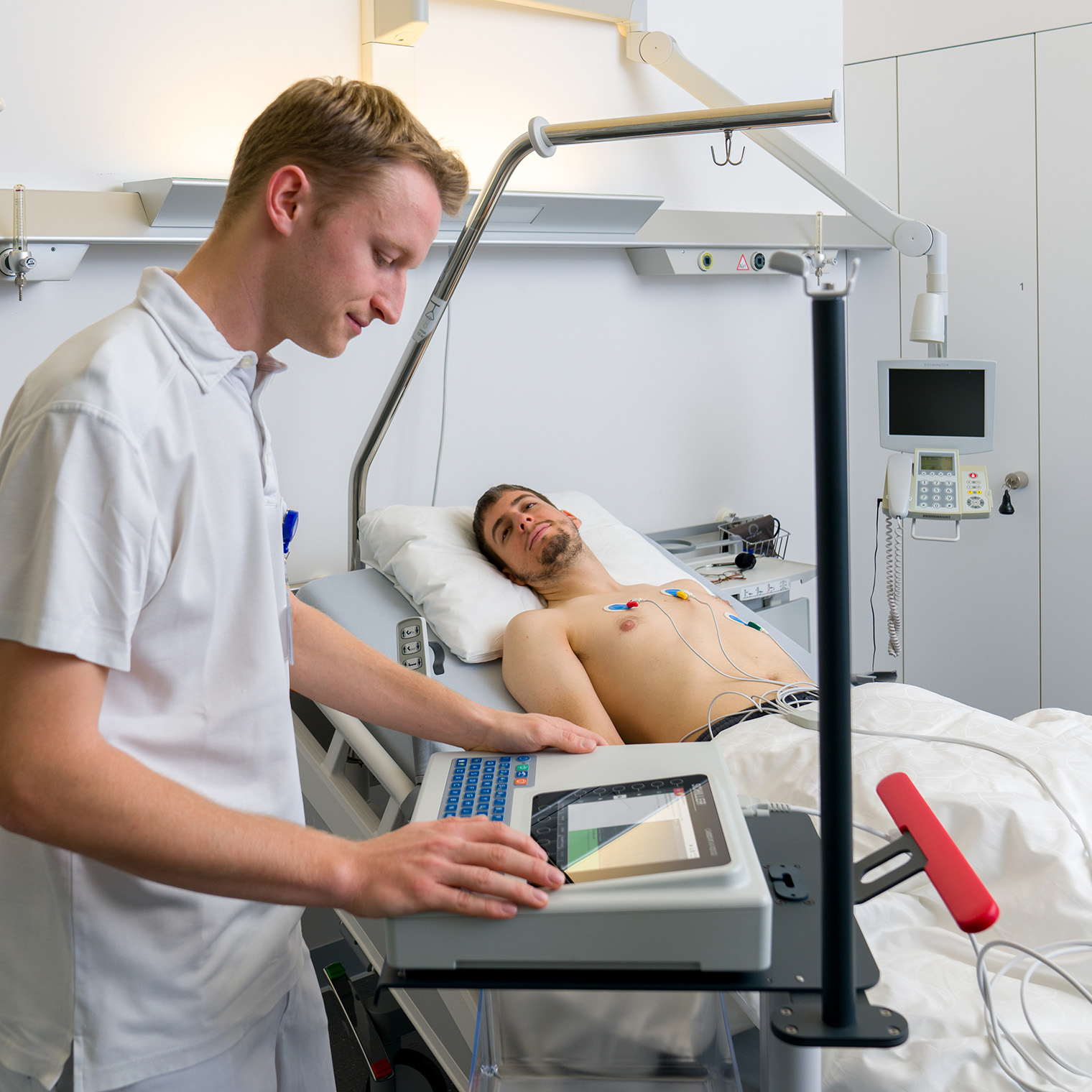

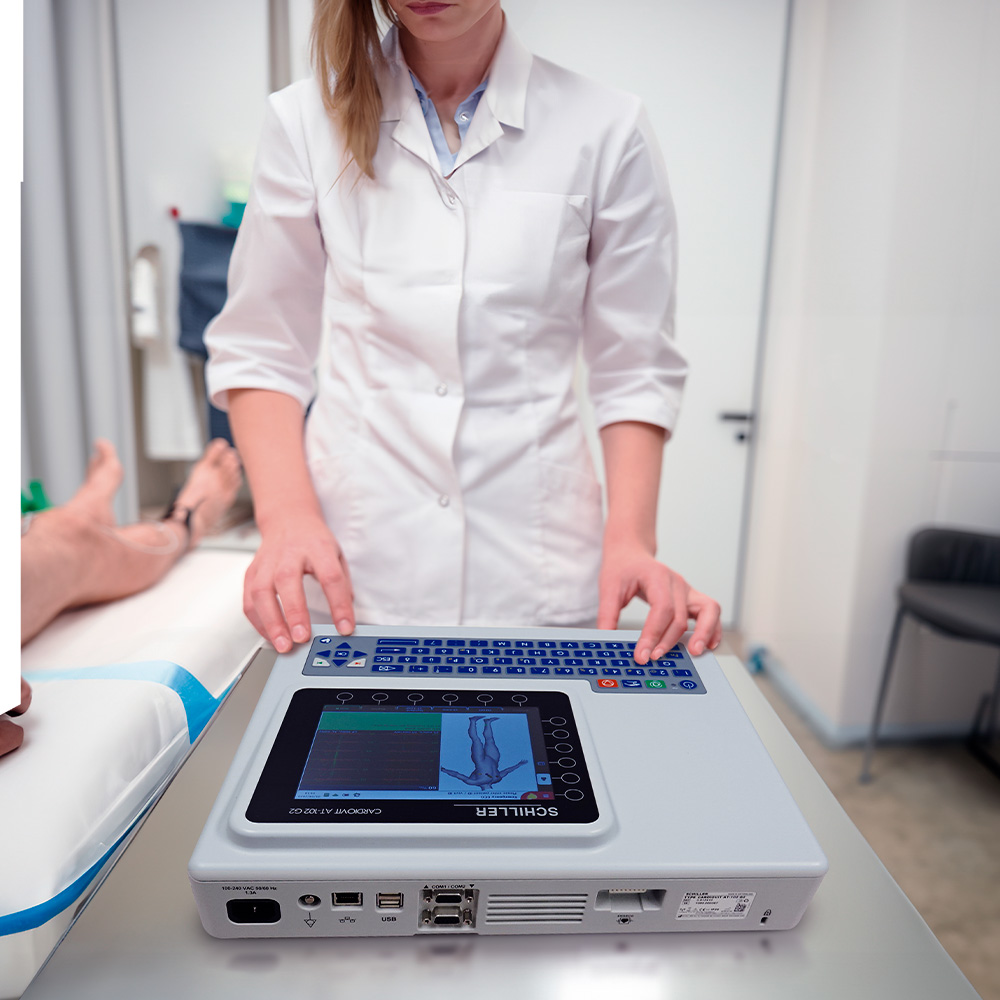

-Suitable for hospitals, clinics, GP practices, pediatric cardiologists, and general cardiology.
-Ideal where high signal quality, reliable data connectivity, and multifunction ECG + spirometry are required.
