Brina

1. Overview / Core Description
-High-End Mechanical Ventilator – Designed for invasive and non-invasive ventilation; suitable for neonatal, paediatric, and adult patients.
-Modular Design – Adaptable for various clinical settings, from neonatal ICUs to adult ICUs.
CE-MDR Certified – Ensures compliance with high safety and quality standards.

2. User Interface & Usability

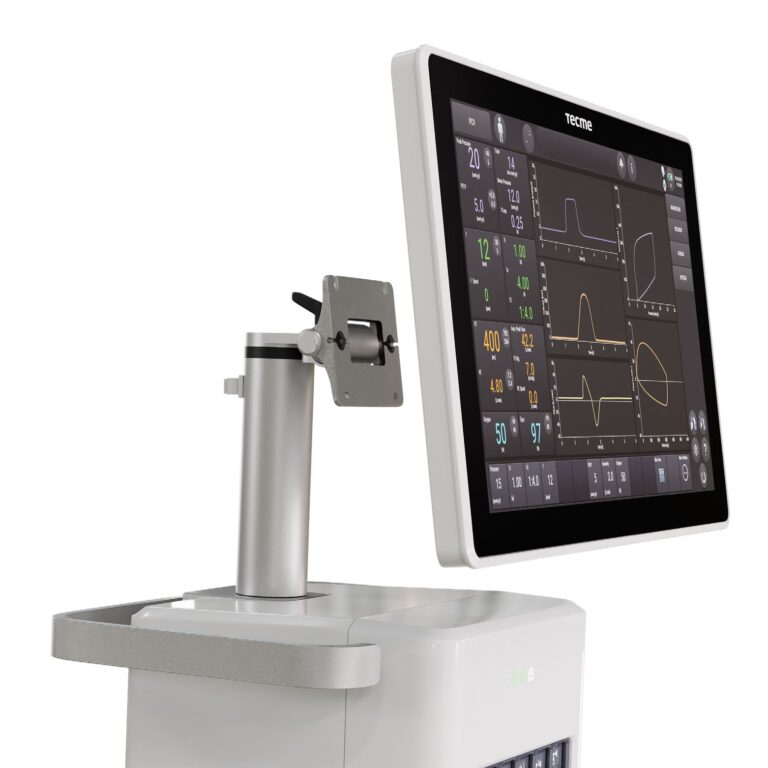

-Display – High-resolution 18.5‑inch touchscreen for intuitive operation and clear visualization of patient data.

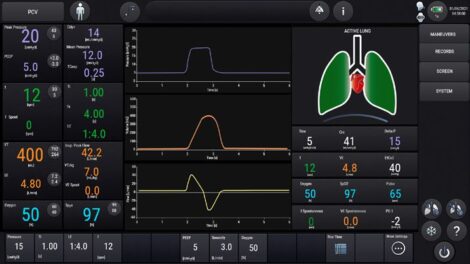

-Smart Graphical Interface – “Active Lung” visualization displays lung compliance and airway resistance for quick clinical assessment.

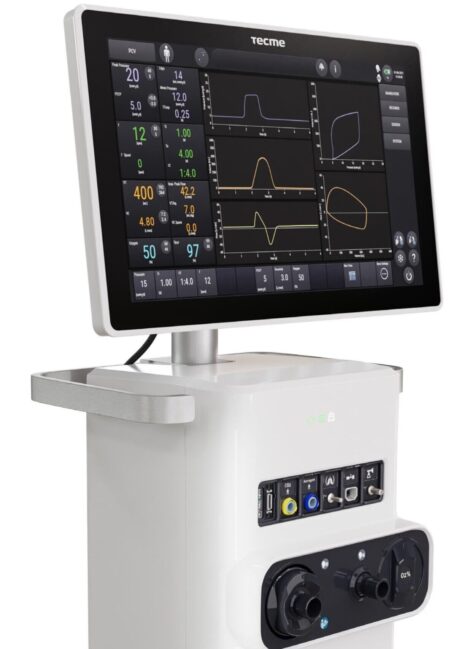

-Flexible Mounting – Display unit (“VentBox”) can be mounted on a trolley, ceiling supply, or shelf according to ICU/OR layout.
-Detachable & Rotatable Screen – Allows viewing from different angles and bedside positions for improved ergonomics.

3. Ventilation & Respiratory Support Features
-Wide Range of Ventilation Modes – Includes conventional and advanced modes such as PRVC, MMV, VSV, etc.
-Support for All Patient Groups – Adults, paediatric, and neonatal (including very small / premature infants).
-Adaptive Ventilation Support (AVA®) – Optimizes minute ventilation with minimal patient work of breathing.
-High-Flow Oxygen / Non-Invasive / Spontaneous Breathing Options – Supports HFOT, spontaneous breathing tests, and NIV.
-Precise Cycle Control – Optimized expiratory port and paramagnetic oxygen sensor ensure stable, accurate ventilation cycles.

4. Monitoring & Clinical Data / Tools

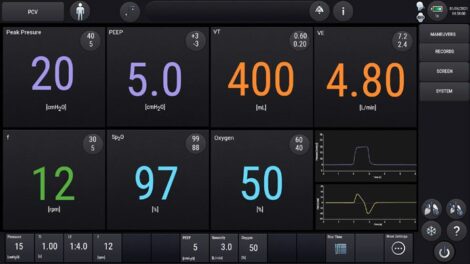

-Comprehensive Monitoring – Displays ventilatory mechanics (compliance, airway resistance), lung dynamics, and ventilatory parameters numerically and graphically.
-Graphical + Numerical Visualization – “Active Lung” graphic shows lung behavior in real-time; compliance and resistance displayed both graphically and numerically.
-Trend / Event Logging – Configurable screens allow logging of events and ventilatory trends for follow-up and clinical decisions.

5. Modular / Optional Capabilities & Advanced Features
-Neonatal Ventilation Configuration – Specialized modes and proximal flow-sensor option for neonatal/infant ventilation.
-Spontaneous Breathing Test (SBT), Stress Index, Oxygenation Indices – For weaning and advanced respiratory assessment.
-High-Flow Oxygen Therapy (HFOT/HFNC/OAF) – Supports non-invasive oxygenation.
-Capnography & Volumetric Capnography – Includes EtCO₂, dead space, alveolar ventilation, VCO₂, VD/VT ratio, etc.
-SpO₂ Monitoring – Masimo® compatible, includes pulse rate, plethysmograph, PVI, etc.
-Transpulmonary Pressure Measurement – Optional via oesophageal manometry (auxiliary pressure port).
-Nebulizer & Aerosol Therapy Support – Integrated pneumatic nebulizer / Aerogen® compatible for drug delivery and humidification.

6. Design Flexibility & Adaptability
-Modular Design – Single ventilator adaptable for neonatal, paediatric, adult ICUs, transport, emergency, etc.
-Versatile Mounting Options – Trolley, ceiling supply, or shelf configuration depending on hospital layout.
-Mobility & Portability – Suitable for ICU, emergency, and transport settings with battery/back-up and modular attachments.
